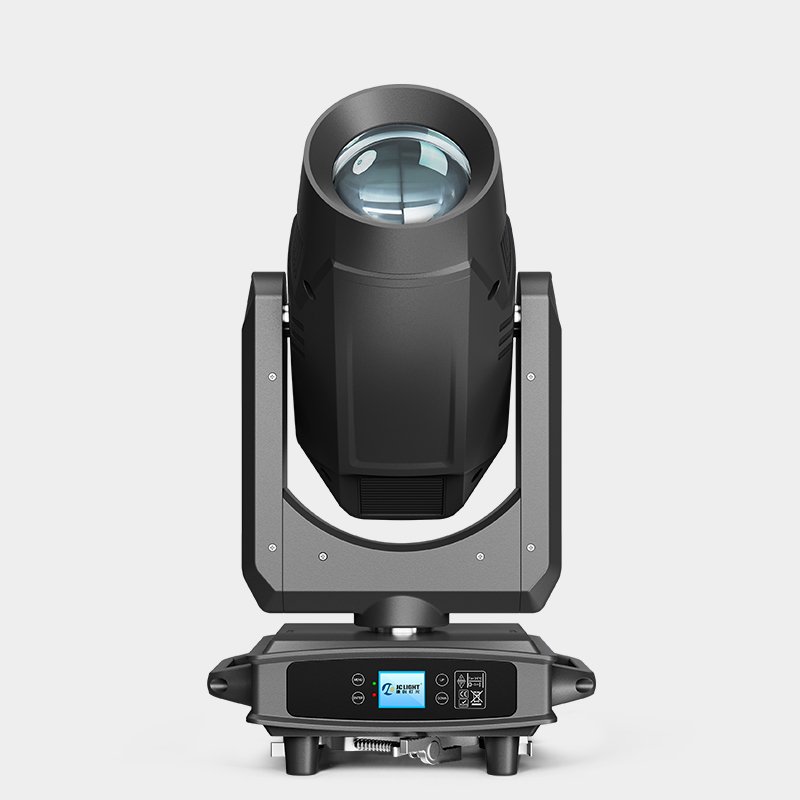

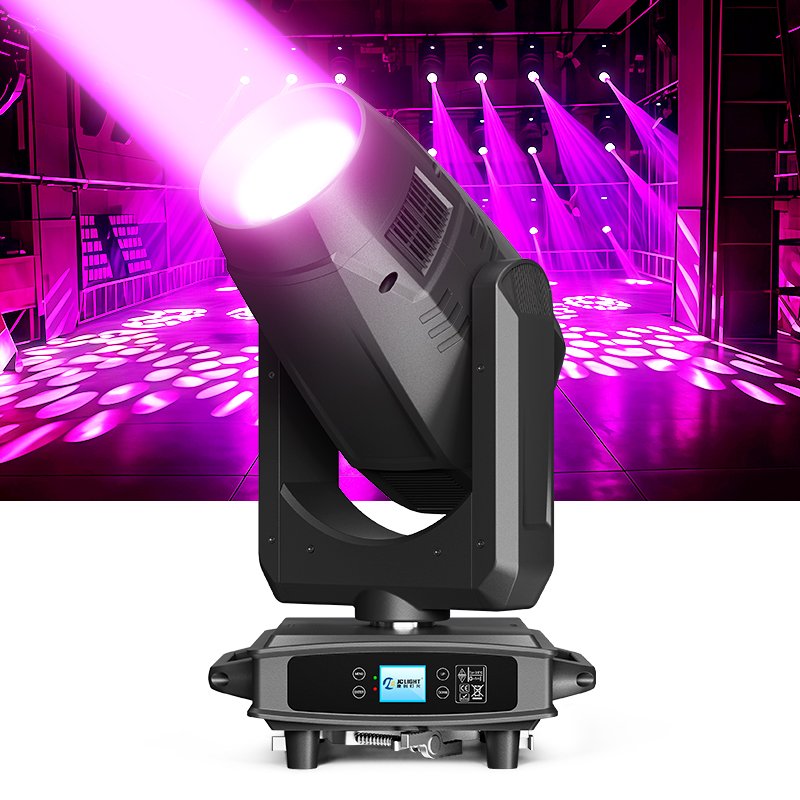

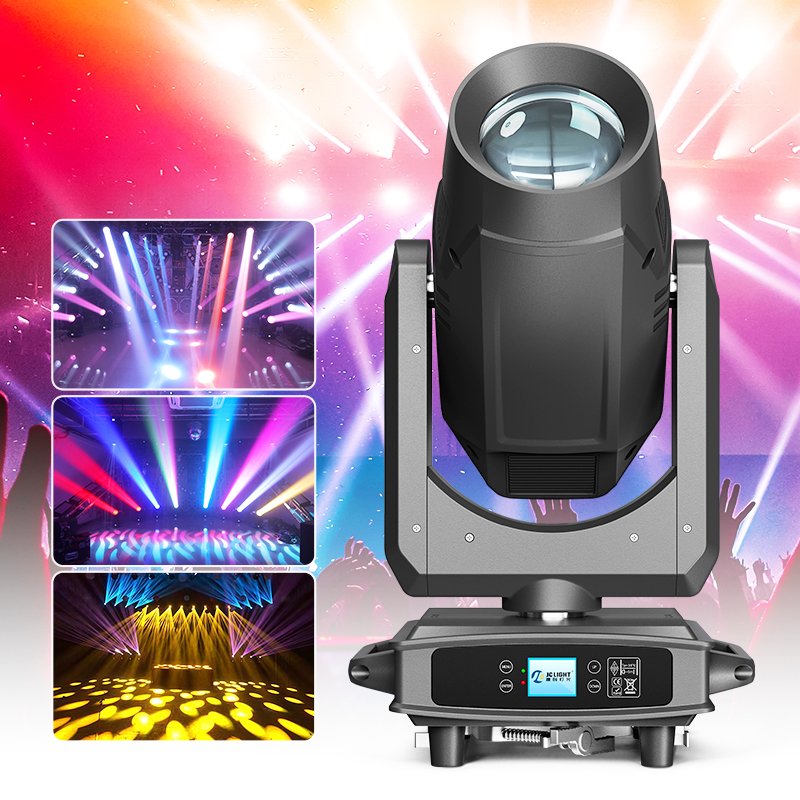

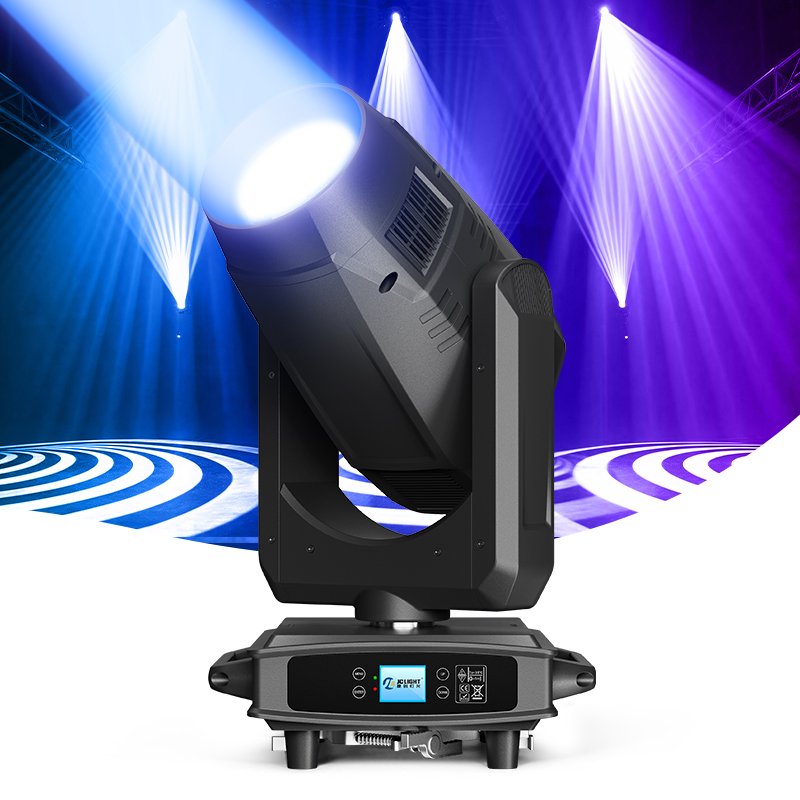

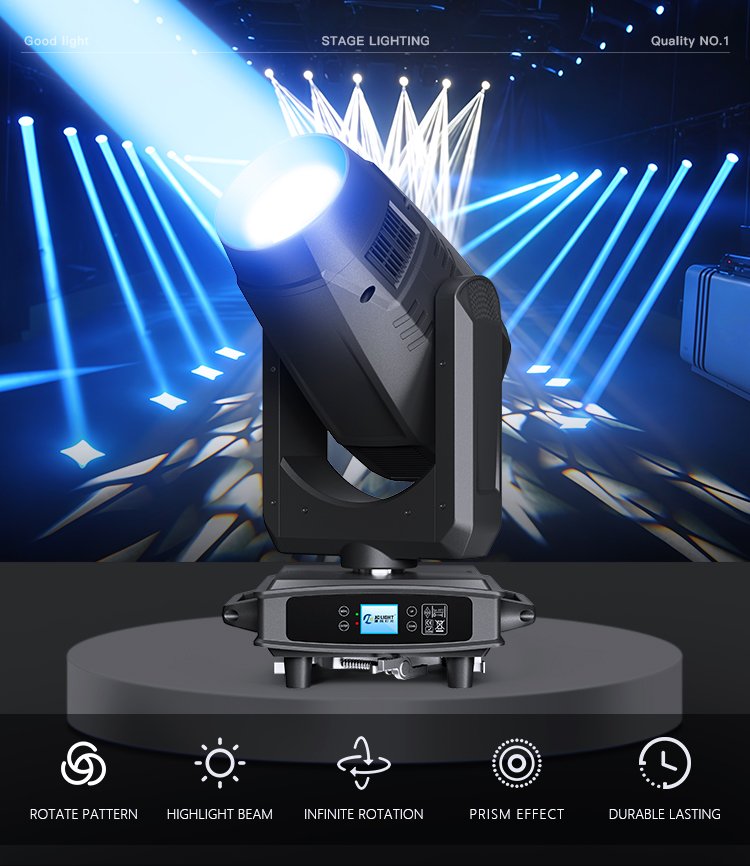

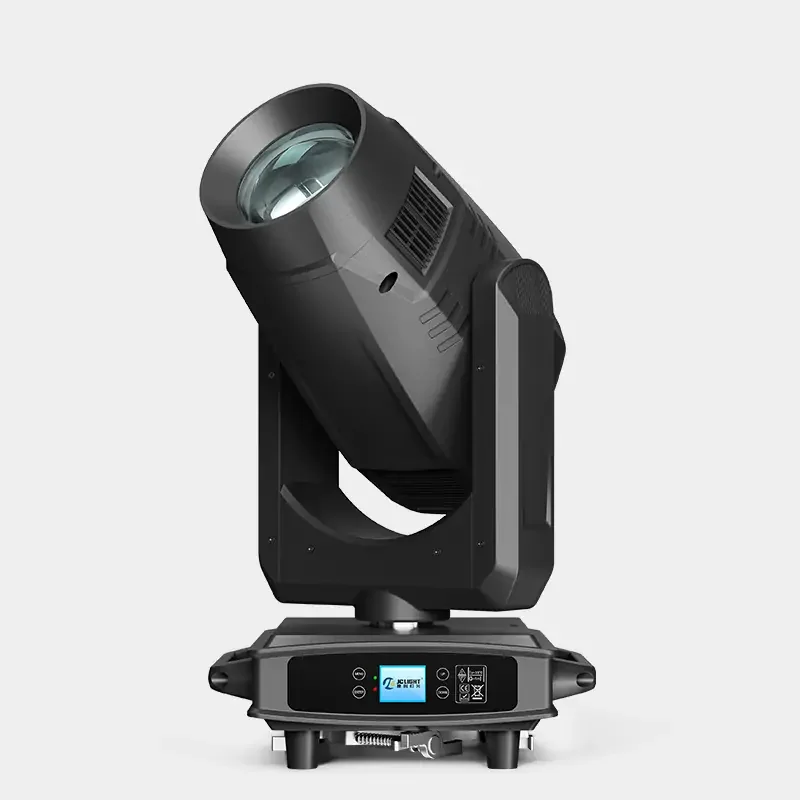

400W 480W LED Moving Head Spot Light with CMY Color Mixing and Zoom
The JC LIGHT AK400 / AK480 is a professional LED moving head spot light designed for stage, theatre and concert lighting applications. Equipped with a high-brightness 400W or 480W white LED source, it delivers powerful output, sharp projections and smooth color transitions.
Featuring a full CMY color mixing system, dual gobo wheels and motorized zoom, this fixture offers versatile lighting effects for professional designers. Its long LED lifespan and advanced optical system ensure stable and efficient performance.
Key Features
- High brightness LED source (400W / 480W options)
- 3-piece CMY color mixing system for full color control
- 7 colors + white color wheel

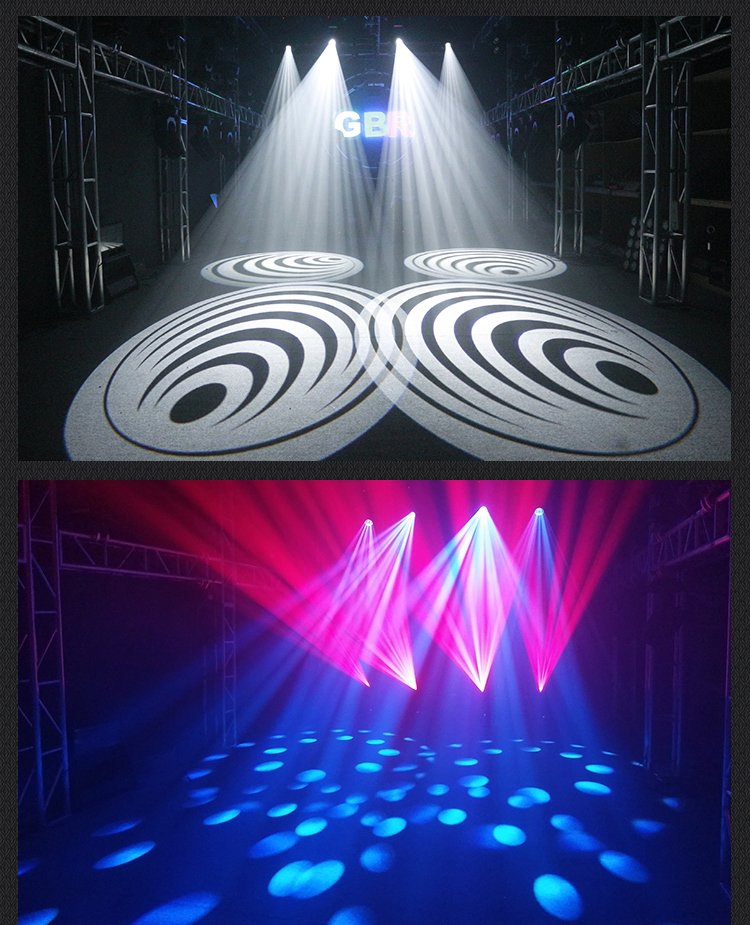

- Static and rotating gobo wheels for dynamic projections
- Motorized zoom with 4°–35° beam range
- Dual prism system (3-facet and 8-facet prisms)
- Frost effect for beam-to-wash transition
- 0–25Hz strobe with multiple strobe modes
- 16-bit precision pan and tilt movement
- 2.8-inch color LCD display with 180° reversible interface
- Long LED lifespan over 20,000 hours
Technical Specifications
| Model | Light Source | Power |
|---|---|---|
| AK400 | 400W LED | 500W |
| AK480 | 480W LED | 600W |
| Voltage | AC100-240V, 50/60Hz |
| Optical Angle | 4° – 35° |
| LED Lifespan | Over 20,000 hours |
| Color System | CMY color mixing + 7 colors + white |

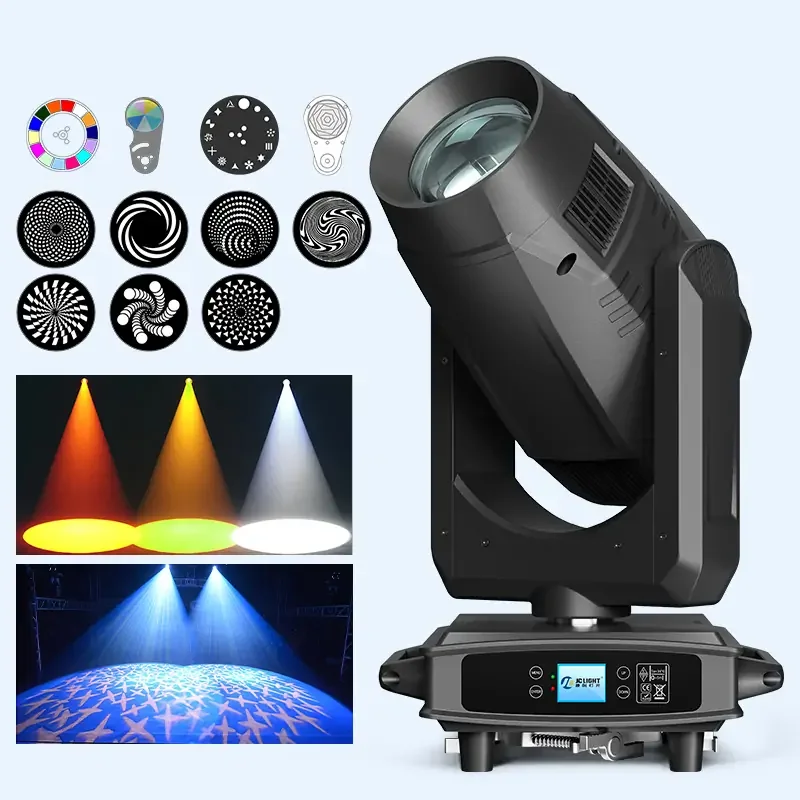

| Static Gobo | 8 gobos + white (flow and jitter effect) |
| Rotating Gobo | 7 gobos + white (flow and jitter effect) |
| Prism | 3-facet prism, 8-facet prism (independent rotation) |
| Frost | Atomizing mirror for wash effect |
| Zoom | Motorized linear zoom |
| Dimming | Electronic dimming 0–100% |
| Strobe | 0–25Hz with multiple modes |
| Pan / Tilt | 540° / 270° (16-bit precision) |

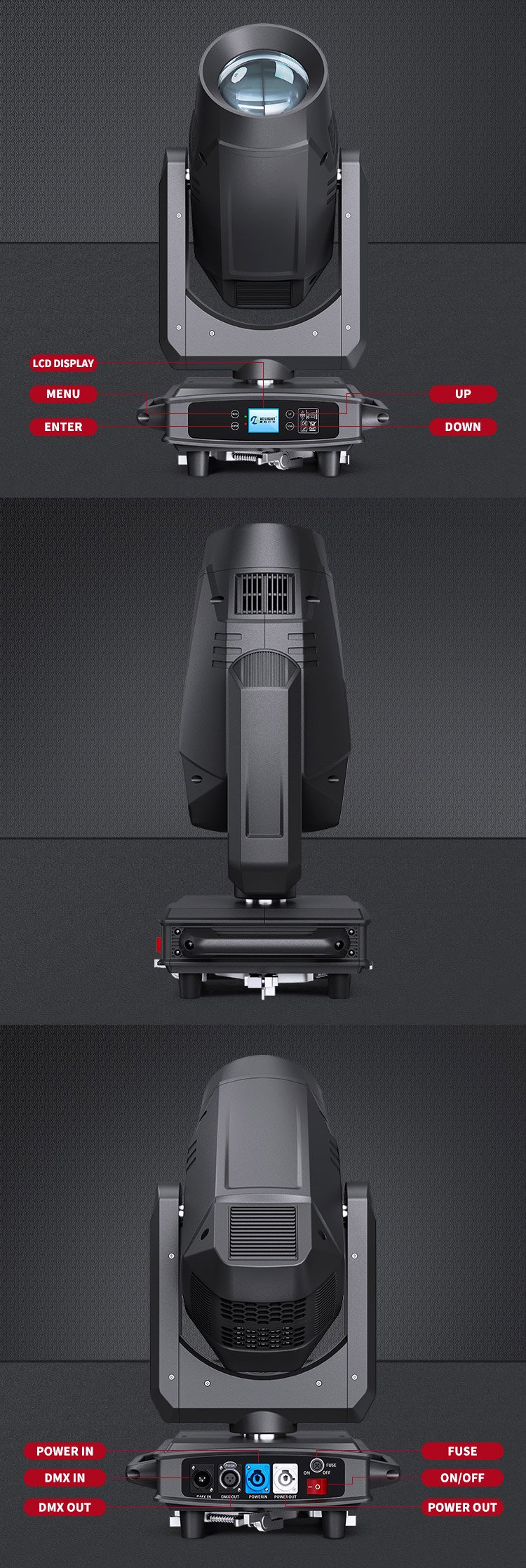

| Display | 2.8-inch color LCD (reversible) |

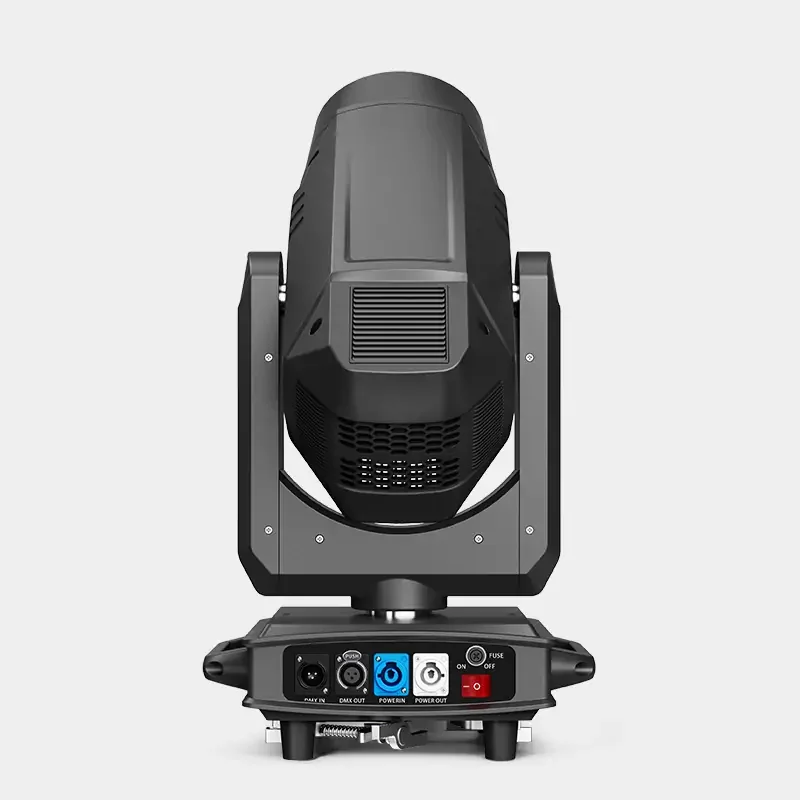

| Control Mode | DMX512 / Auto / Master-slave / Sound / RDM |
| Channel | 22CH standard / 26CH extended |
| Product Size | 621 × 315 × 263 mm |
| Net Weight | 16.65 kg |
| SKU | AK400 / AK480 |

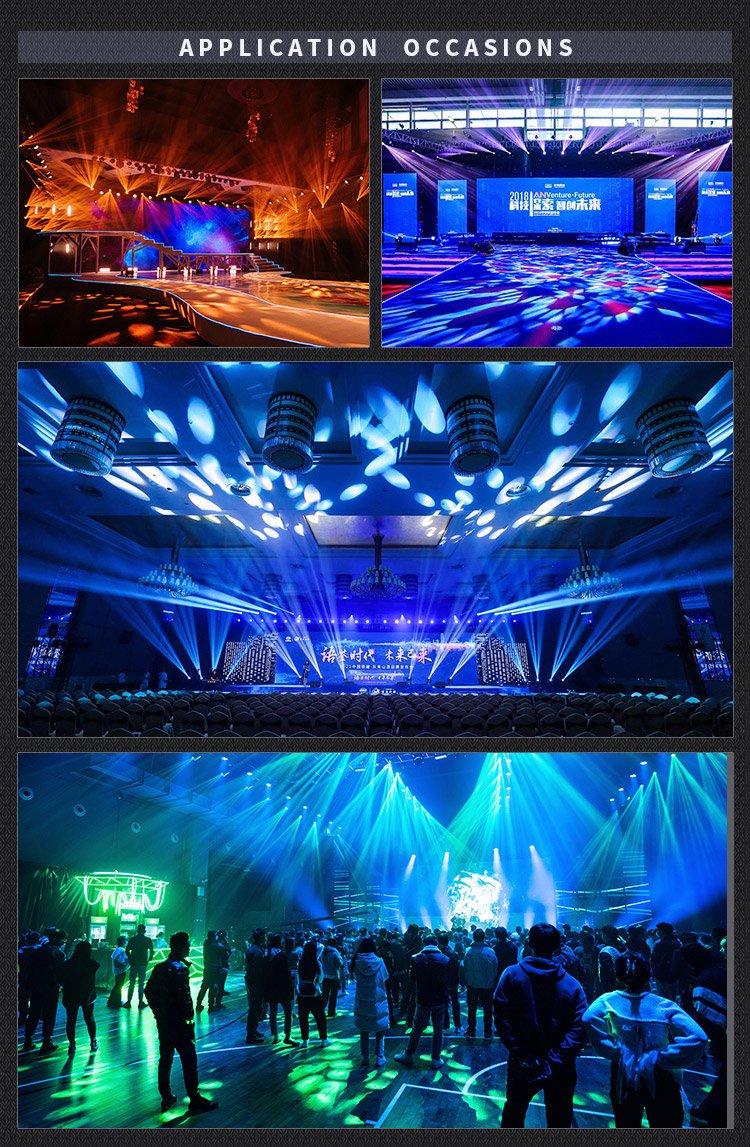

Application Scenarios

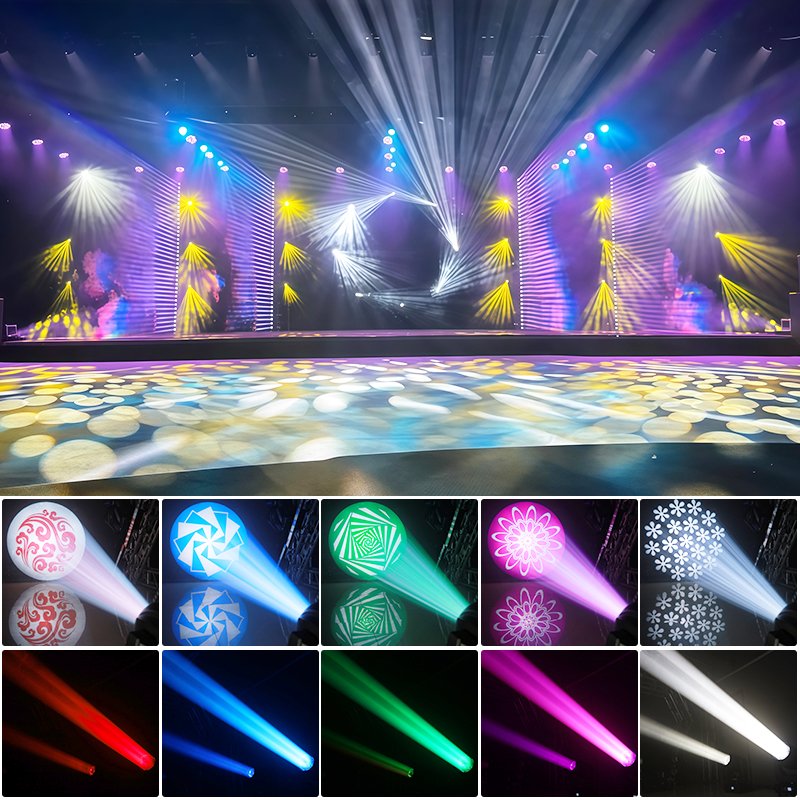

- Concert and stage lighting systems
- Theatre and auditorium lighting
- TV studio and production lighting
- Event and exhibition lighting
- Professional rental and touring applications
Why Choose JC LIGHT
- Professional stage lighting manufacturer with global export experience
- Advanced LED spot lighting with CMY mixing system
- Strong OEM and ODM customization capability
- Long lifespan LED for reduced maintenance cost
- Fast response and technical support for projects
LED Moving Head Spot Light FAQ
What is the difference between AK400 and AK480?
The difference is the LED power (400W vs 480W), which affects brightness and application scale.
Does it support CMY color mixing?
Yes. It features a 3-piece CMY color mixing system for full color control.
What effects does this fixture provide?

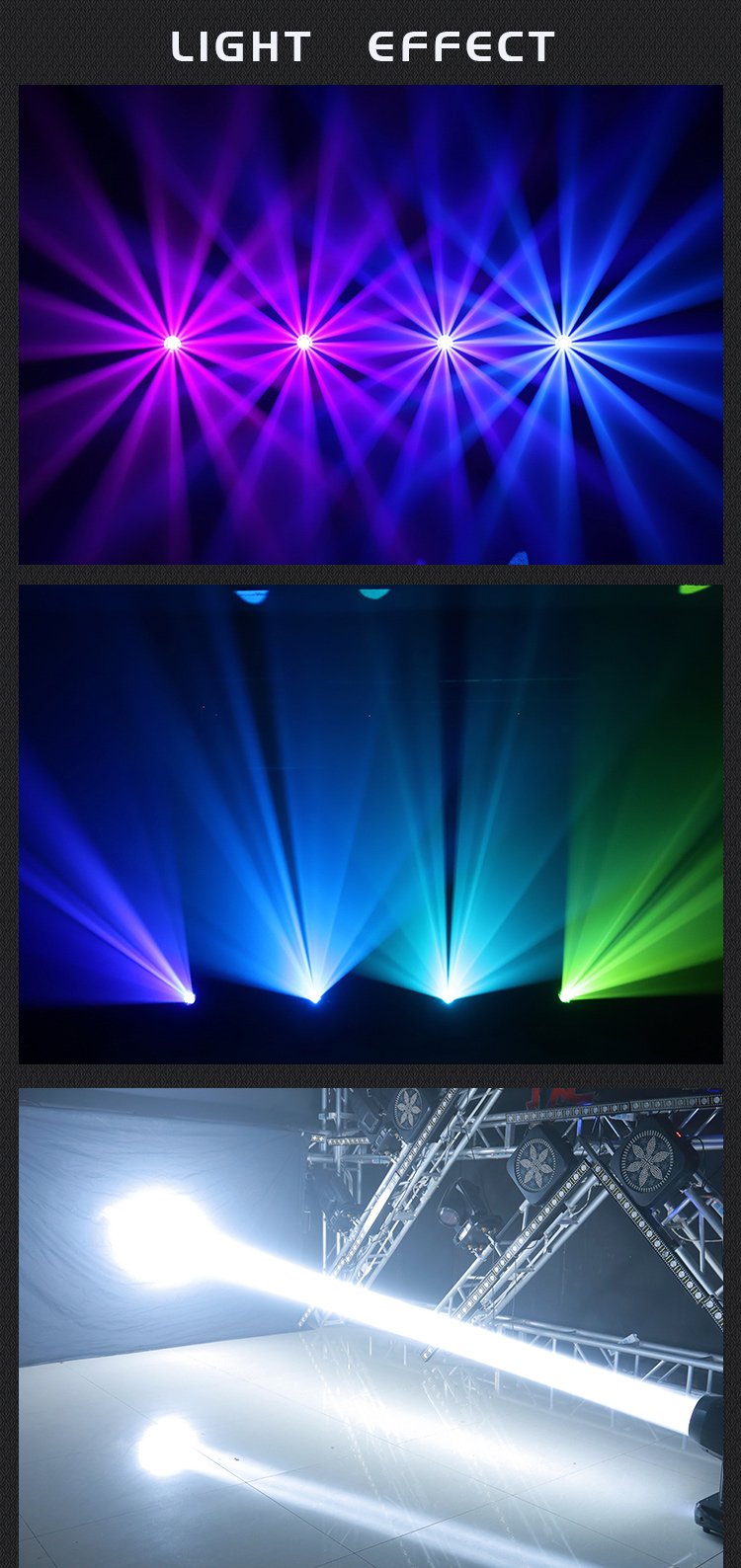

It supports gobo projection, prism, zoom, frost and strobe effects for versatile lighting design.
Is it suitable for professional stage use?
Yes. Its high brightness and full feature set make it ideal for stage, theatre and event lighting.
Does it support RDM function?
Yes. It supports RDM for remote configuration and monitoring.
Do you support OEM customization?
Yes. JC LIGHT provides OEM and ODM services, including branding and product customization.
